Step 1 - Check
Make sure you have all the hardware required for each bracket.
OZ15/OZ20 Installation Instructions - Ozroofracks
PRELIMINARY NOTES
(1) This product includes a range of accesories to facilitate the installation in different vehicule makes/models.
(2) Power tools are NOT REQUIRED to install our product/s. By using power tools you can damage your vehicle and the thread on the brackets.
(3) Avoid welded nut to snap: Max Torque 25 Nm (18.439 ft-lbs) that means tighter than hand tight + 1/4- 1/2 a turn in most cases.
(4) Use the lock nut provided behind the bracket nut (for extra safety).

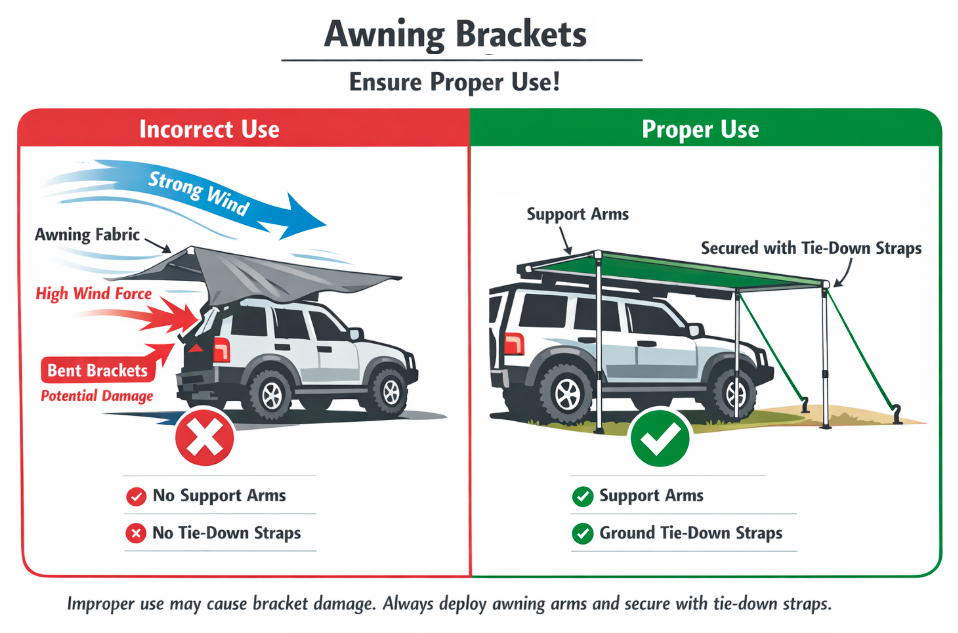

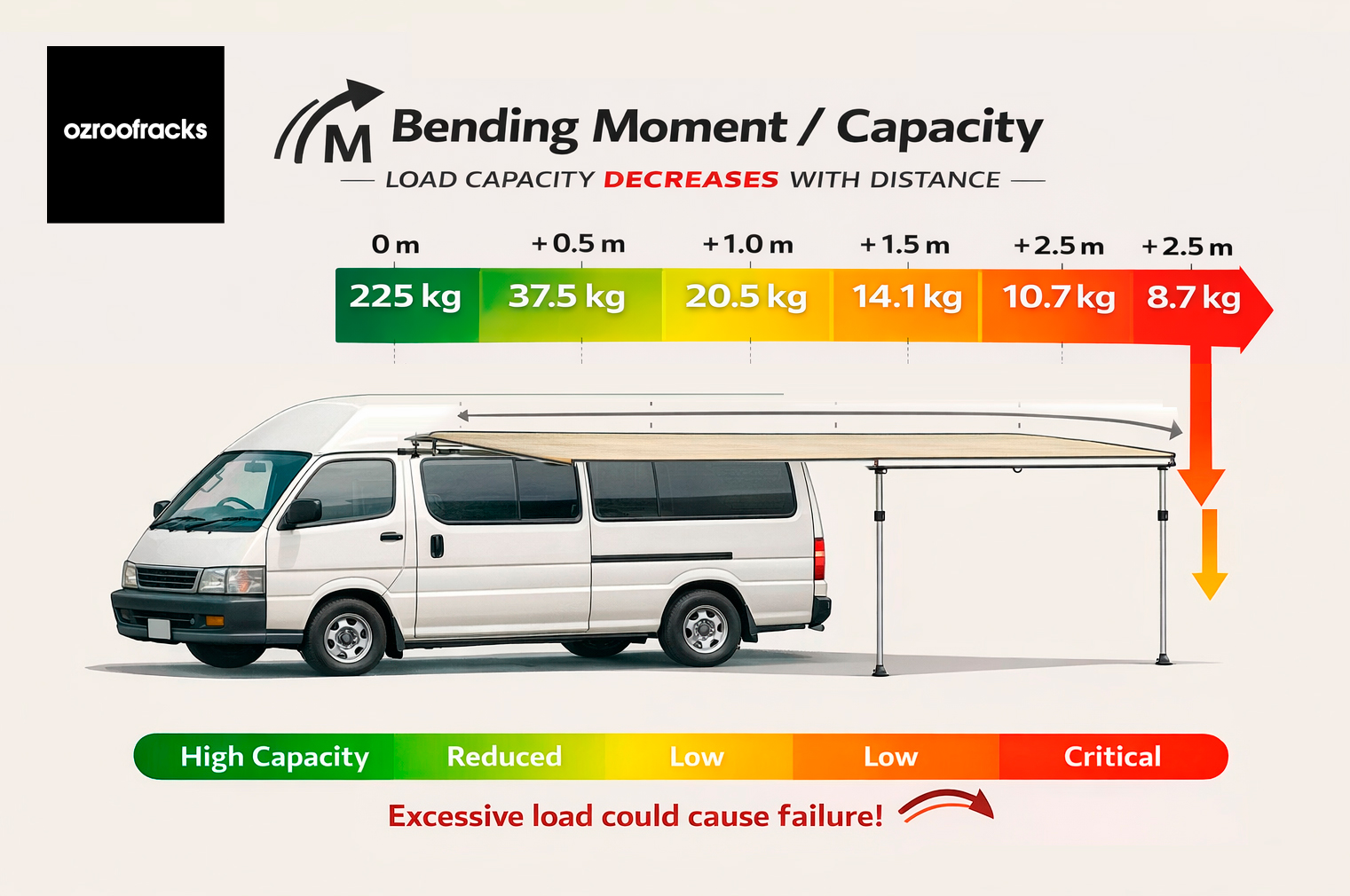

(5) These brackets are not compatible with any freestanding awning
Improper use may result in bending or damage to the brackets/vehicle. The user is unique responsible for ensuring the awning/accesory is correctly deployed and adequately secured at all times.
2 WAYS TO INSTALL
STRONGEST (recommended): Bolt back to front or finishing to front nut
EASIEST: Nut behind the small plate

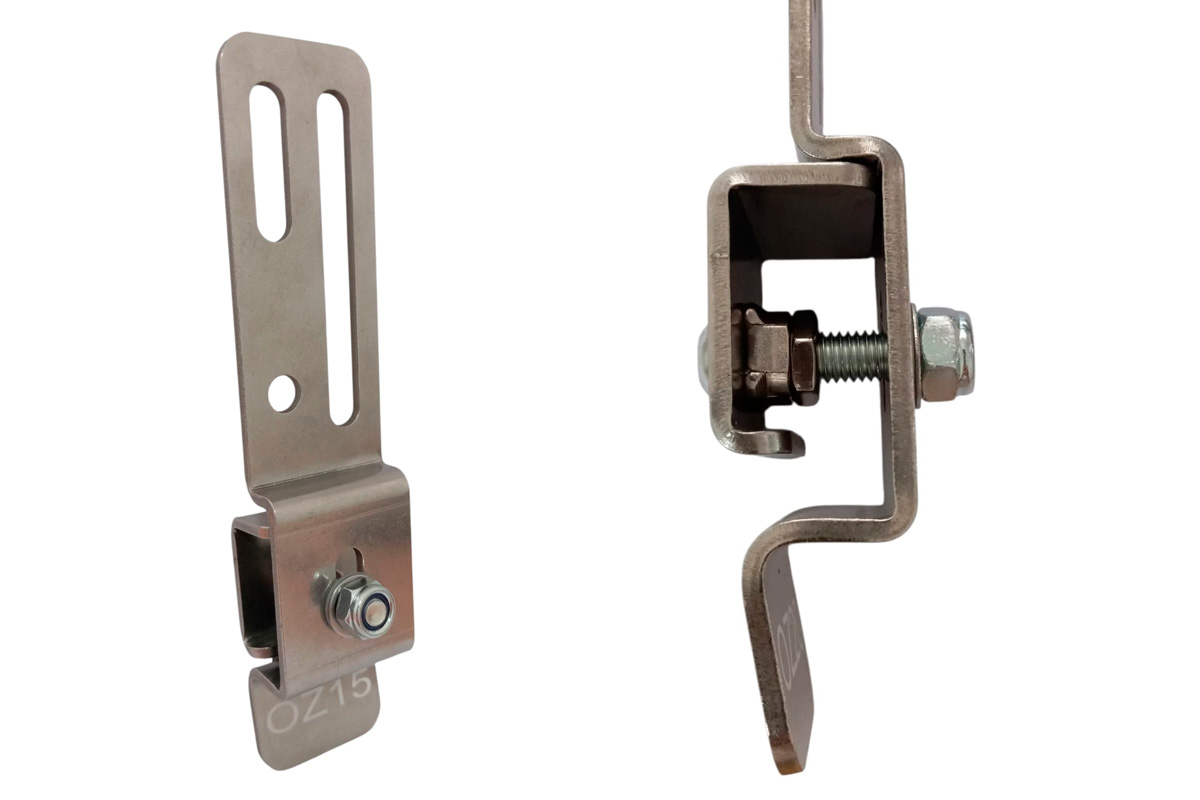

The strongest way to install
Step 2 - Clean
Clean the gutter and make sure there is nothing where you'll place the bracket.
Step 3 - Protect gutter
Place a piece of paper on the vehicle wall to protect it from scracthes.

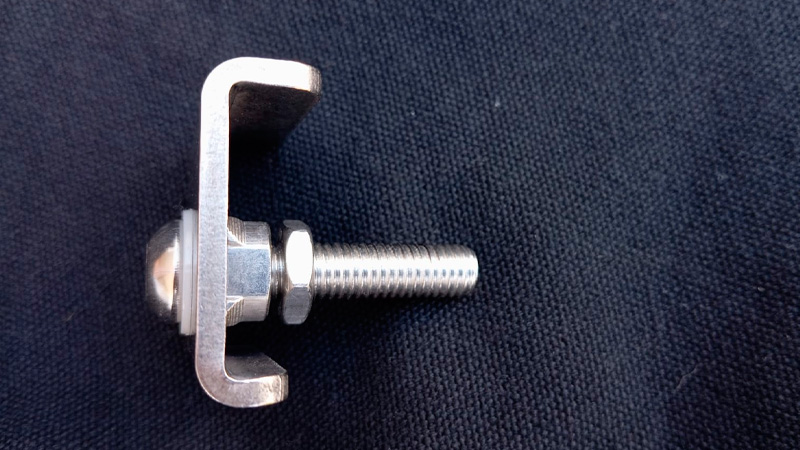

Step 4 - Button screw
Place the button head socket screw on the flat side of the backplate with a nylon washer in between. You don't need a wrench to do this.

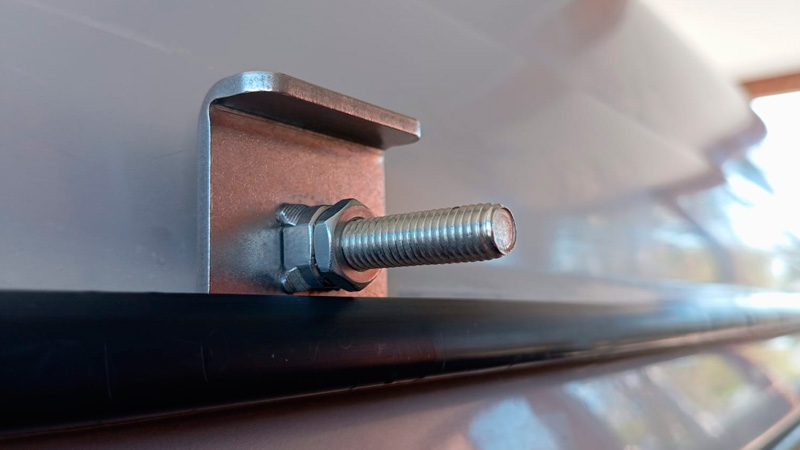

Step 5 - Lock with the thin Lock Nut
Now lock with the thin lock nut well tightened on top of the welded nut preinstalled.

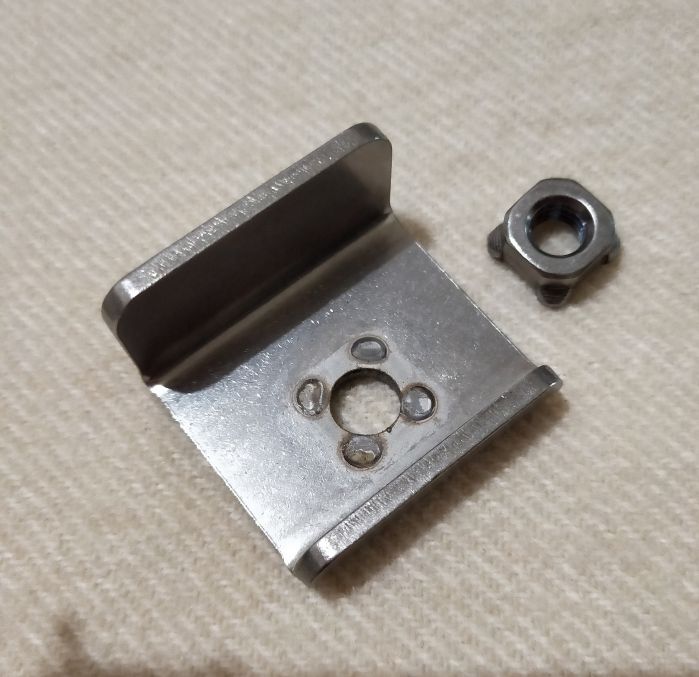

Step 6 - Small plate on gutter
Put the small plate set over the gutter.

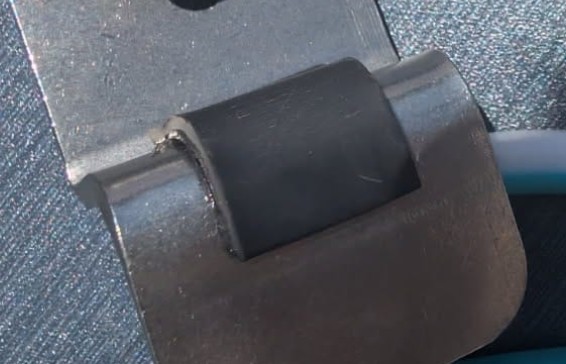

Step 6 - Rubber on bracket
Now you can stick the mounting rubber to the lower bracket fold to protect your vehicle

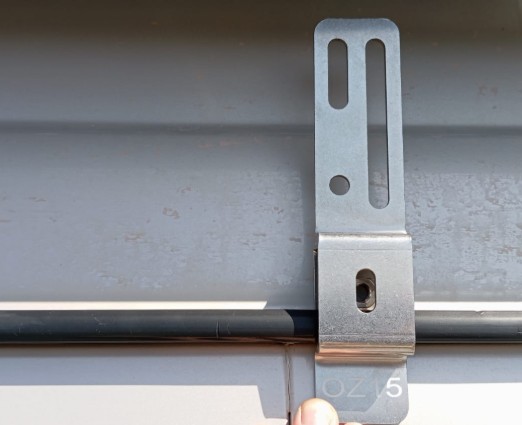

Step 7 - Position
Gently position the bracket under the gutter, securing the over gutter plate.
Step 8 - Start tightening
Now you can start tightening the nylom lock nut to the bolt on the bracket.

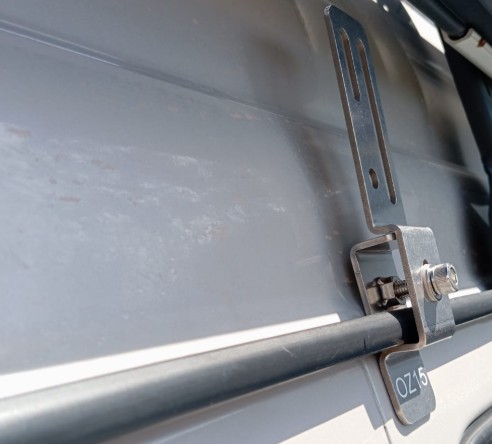

Step 9 - Finish
Everything should be ready by now to fit accesories and re-check the installation.
Step 10 - Prevent Damage
Check often your installation and make sure that any accesory fitted to the bracket is at least 3-5mm away from the vehicle.
Step 11 - Preventive Treatments
We encourage installator/s to use a good silicone self-fusing tape, liquid sealant, high density thread seal tape or anaerobic sealant if you're planning a low-maintenance and long-lasting installation.

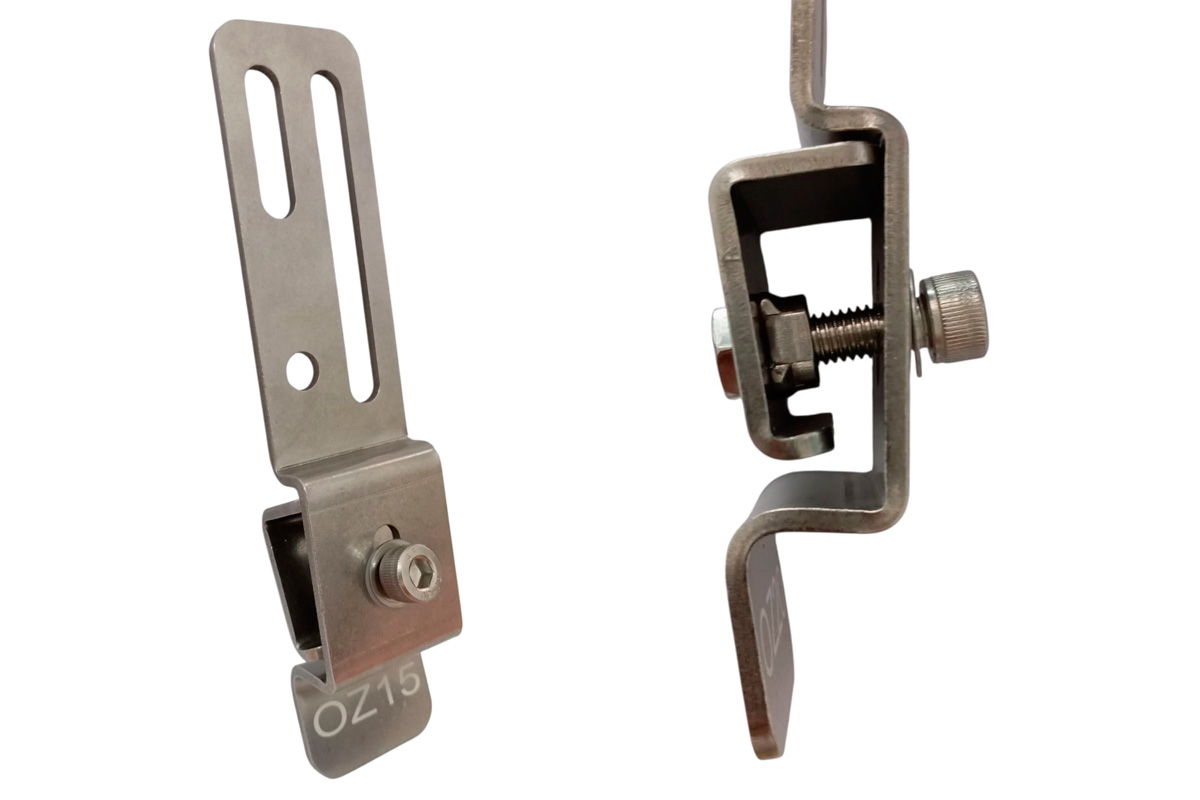

The easiest way to install
Step 1 - Check
Make sure you have all the hardware required for each bracket.
Step 2 - Clean
Clean the gutter and make sure there is nothing where you'll place the bracket.
Step 3 - Protect gutter
Place a piece of paper on the vehicle wall to protect it from scracthes.
Step 4 - Gutter Plate
Put the gutter small plate over the gutter, laying down over the vehicle wall.
Step 5 - Put the rubber
Fit the adhesive rubber on the bracket, where the bracket will contact the vehicle (under gutter - fig.3).
Step 6 - Position
Gently position the bracket under the gutter, securing the over gutter plate.

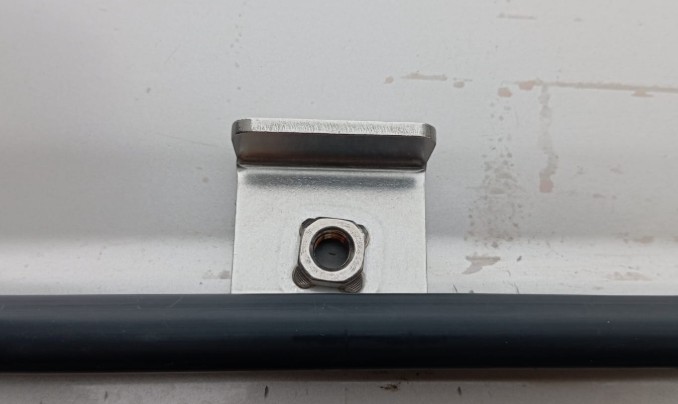

Step 7 - Avoid snap!
Avoid snap! the welded nut is just to guide the bolt position.

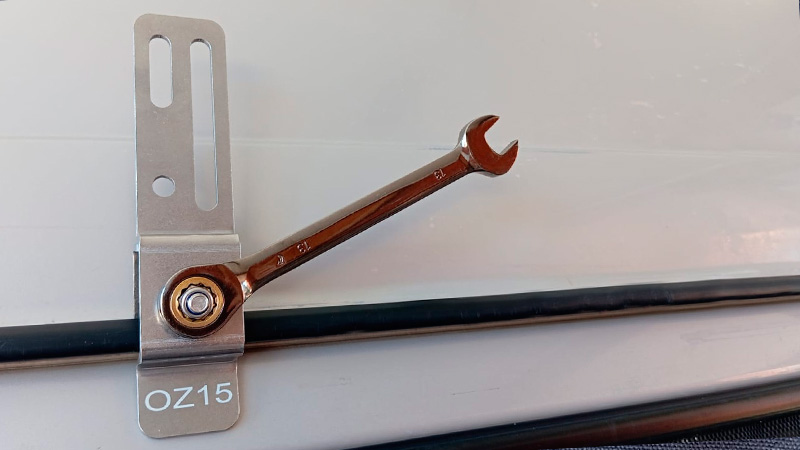

Step 8 - Start tightening
Now you can start tightening the bolt to the bracket.
Max Torque 25 Nm (18.439 ft-lbs) that means tighter than hand tight without forcing.

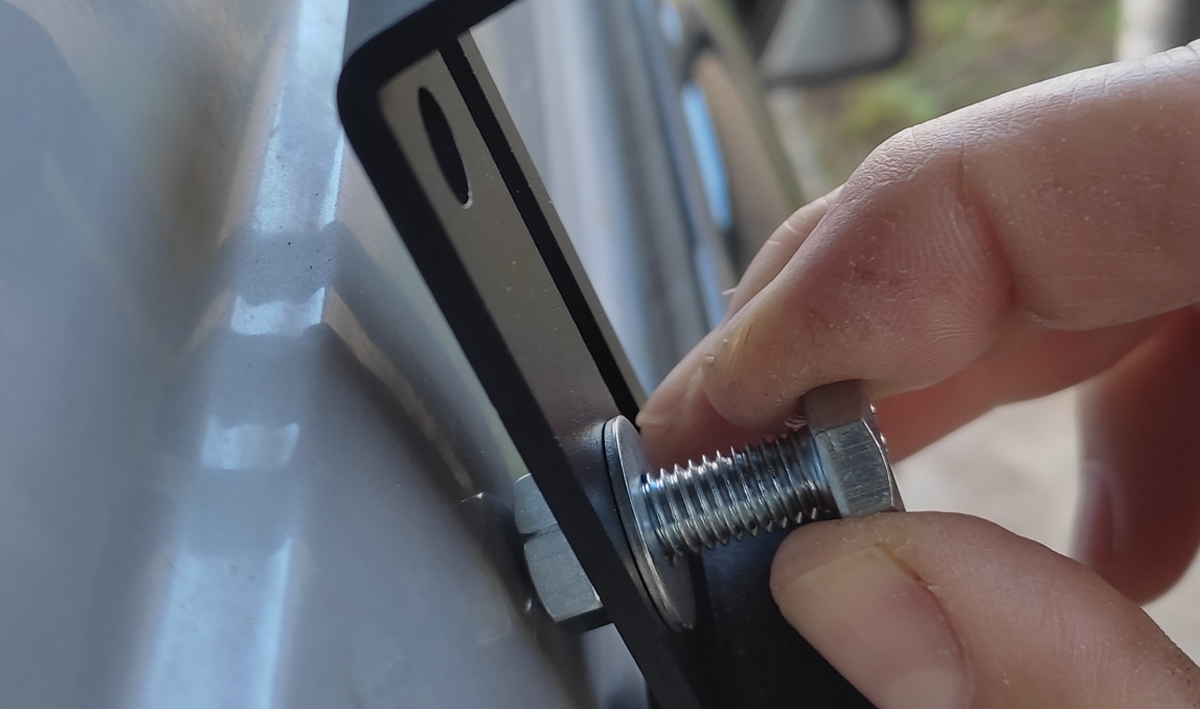

Step 9 - ALWAYS LOCK
Once you see the bolt thread from the back, place the thin safety lock nut.
Hold super tight!
This is proven to increase x3 times the downwards strength of the bracket.
Step 10 - Finish
Everything should be ready by now to fit accesories and re-check the installation.
Step 11 - Prevent Damage
Check often your installation and make sure that any accesory fitted to the bracket is at least 3-5mm away from the vehicle.
Step 12 - Preventive Treatments
We encourage installator/s to use a good silicone self-fusing tape, liquid sealant, high density thread seal tape or anaerobic sealant if you're planning a low-maintenance and long-lasting installation.
